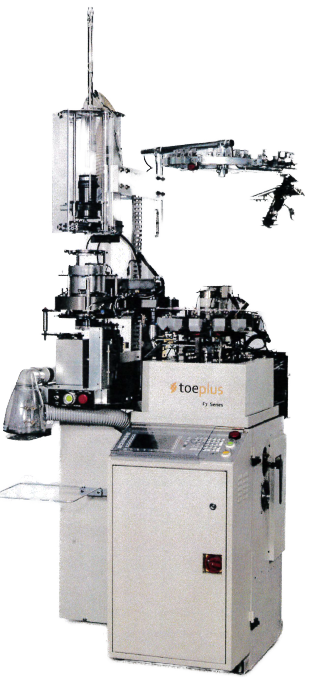

Single Cylinder Knitting Machin
single cylinder knitting machine
Manufactured by Taihoshin Co., Ltd. (Taiwan) Equipped with automatic toe sewing function
 |
MODEL F7UT （for socks）
- 1 thread path (9 threads), 6 motif thread paths (3 threads), 17 threads in total
- 16 stages/7 sets of actuator arrangement
- Controlled by a step motor, the cylinder, stitch cam, rubber system, and suction air volume are adjusted to improve knitted products.
- Equipped with a high-speed, large-capacity CPU, chain data, size, and needle selection can be easily modified on the control panel.
- Linking processing can be performed at the same time as socks are knitted, improving production efficiency.
- You can download data to your PC, tablet, etc. using a USB memory and check the production status.
- Equipped with uninterruptible power supply (UPS)
- TELMIC. B.T.S.R.,LGL thread breakage sensor (optional)
| format | Model F7UT-P | Model F7UT-P | Model F7UT-PT |
|
diameter needle maximum speed drive motor suction fan floor area packaging dimensions mesh weight total weight |
3.75" & 4" 80-200N 360RPM 1.5KW 1.5KW 160x160x270CM 117x115x190CM 380KG 500KG |
3.75" & 4" 80 ~ 200N 300 RPM 1.5KW 1.5KW 160x160x270CM 117x115x190CM 380KG 500KG |
3.75" & 4" 80 ~ 200N 300 RPM 1.5KW 1.5KW 160x160x270CM 117x115x190CM 380KG 500KG |
Single Cylinder Knitting Machin
Taihoshin |
 |
 |
